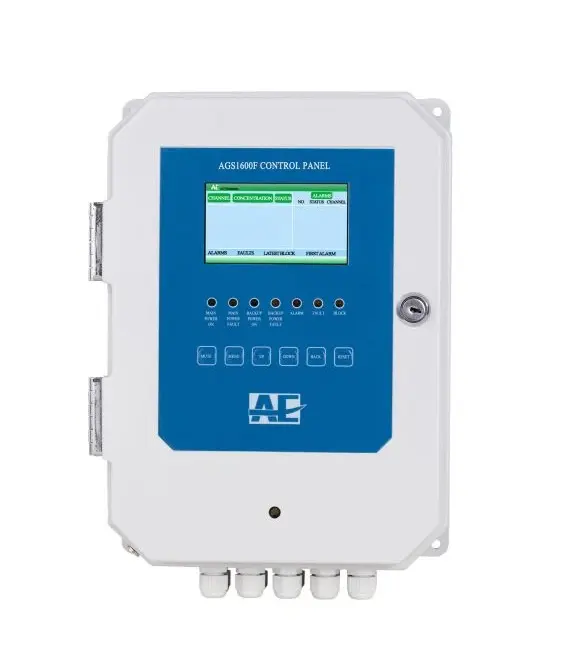

The AGS1600F control panel is designed with 1 to 4 channels that can monitor alarms in real time.
And a built-in relay output to control locking equipment. According to these requirements, the product is suitable for various industries, including petroleum, chemical, energy, steel, metallurgy, gas, and other industries.
Features
The products have passed national CCCF certification.
A rich, wide-screen LCD graphic display.
Three built-in relays for multifunctional control.
Features
Power supply: 220VAC
Power consumption: ≤6W
Signal input: 4-20mA
Signal output: RS485
Three-wire wiring
Compatible cable: RVVP3*1.5mm2
Relay output: 3 passive relays
(250VAC/5A; 30VDC/5A)
Display: Color LCD screen,
Resolution: 480*272
Indicator light: Alarm, fault, power, power failure, backup power failure
Button operation method
Applications
Fertilizer plants
Chemical gas storage area
Advantages
Built-in UPS power supply to prevent potential hazards from accidental power outages.
Wall-mounted carbon steel enclosure, more durable.
Compatible with fixed gas detectors.
Service
1. Provide complete installation and commissioning guidance documents;
2. Based on site requirements, Provide product/system installation guidance services to ensure normal and effective use of products/systems.
