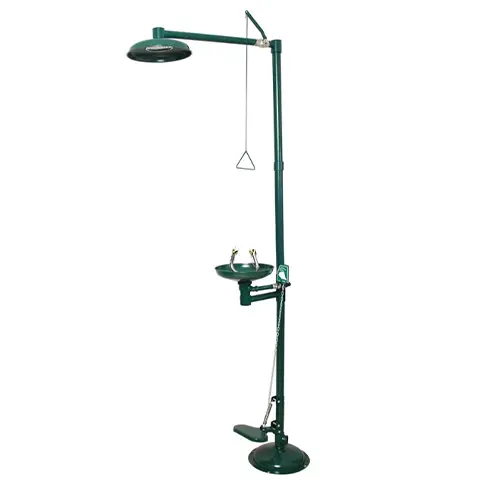

EYE AND BODY SHOWER, GALVANIZED STEEL, PAINTED, HAND-FOOT CONTROLLED
PRODUCT ORDER CODE: ODK1710-1A
Suitable for floor mounting with its own footplate.
Eye Shower with Hand and Foot Control & Body Shower with Hand Control
Body Shower Connection Pipe: 1" Galvanized Steel
Body Pipes: 1-1/4" Galvanized Steel
Eye Shower Valve: 1/2" Galvanized Steel
Body Shower Valve: 1" Galvanized Steel
Eye Shower Bowl: 1.2 mm Galvanized Steel, 300 mm Diameter
Floor Connection Bowl: 1.2 mm Galvanized Steel, 340 mm Diameter
Water Inlet: 1/2"
Waste Water Outlet: 1 1/4"
T-Hole: 304 Chrome Stainless Steel, Complete
Water Strainer: 304 Chrome Stainless Steel
Minimum Flow Pressure: 1.4 Bar
Maximum Flow Pressure: 2.8 Bar Bar
Max Static Pressure: 7 Bar
Ideal Flow: Min. 6 lt/min (Eye Shower) / Min. 60 lt/min (Body Shower)
Standard: ISO 9001:2015 EN 15154
With 10 years of experience in the production of emergency safety showers, our company is among the few manufacturers in Turkey that hold the required quality certificates according to the Occupational Health and Safety Regulations (TSE 15154-1, TSE 15154-2, ISO 9001, and ISO 10002).
