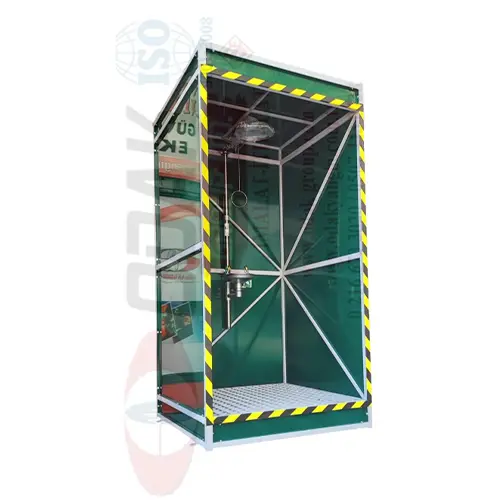

PRODUCT CODE: ODK1710-8A GALVANIZED STEEL PAINTED CABIN EMERGENCY SHOWER UNIT
PRODUCT CODE: ODK1710-8B 304 STAINLESS STEEL CABIN EMERGENCY SHOWER UNIT
PRODUCT CODE: ODK1710-KB01 DKP PROFILE SHEET METAL CABIN
- ISO 9001 TS EN 15154-1 and TS EN 15154-2 certified.
- Complies with ANSI Z358.1-2009 standards
CABIN FEATURES
- Suitable for indoor and outdoor applications
- Cabin frame: 30x30 profile / Frame: 1.2 mm thick, static-painted sheet metal
- Cabin: DKP material, static-painted oven-dry
- Water mains pressure is recommended to be 2-3 bar.
- Rough GRP non-slip base grate
- Cabin wastewater collection chamber height: 200 mm, wastewater outlet: 1"
- Cabin Dimensions: Width: 1200 mm * Length: 1200 mm * Height: 2400 mm
FEATURES OF THE EMERGENCY SHOWER UNIT LOCATED INSIDE THE CABIN
- Body Shower Connection Pipe: 1” 304 Stainless Steel or Galvanized Steel
- Body Pipes: 1-1/4” 304 Stainless Steel or Galvanized Steel
- Eye Shower Valve: 1/2” 304 Stainless Steel or Galvanized Steel
- Body Shower Valve : 1” 304 Stainless Steel or Galvanized Steel
- Eye Body Shower Bowl : 1.2 mm 304 Stainless Steel or Galvanized Steel 300 mm Diameter
- Floor Connection Bowl : 1.5 mm 304 Stainless Steel or Galvanized Steel 340 mm Diameter
- Water Inlet : 3/4 “
- Water Outlet : 1 1/4”
- T-Horn : 304 Stainless Steel Complete
- Water Strainer : 304 Stainless Steel
- Minimum Flow Pressure : 1.5 Bar
- Maximum Flow Pressure : 4 Bar
- Maximum Static Pressure : 7 Bar
- Ideal Flow : Min. 6 lt/min (Eye Shower) / Min. 60 lt/min (Body Shower)
- Standard : ISO 9001:2015 TS EN 15154-1 / TS EN 15154-2
